Pipe clamp FRSR

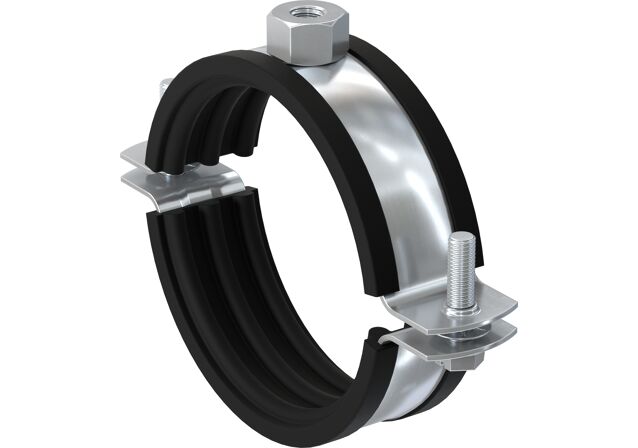

  • Product Picture: "fischer Pipe clamp FRSR eco 26 - 30 M8"
  • Application Picture
  • Application Picture
    • Application Picture
    • Product Picture
    • Application Picture
      Art.-No. 568807

      fischer Pipe clamp FRSR eco 26 - 30 M8

      Product variants
      Download of image data
      Top Features
      • Sound insulation insert.
      • Two-screw design for optimized adaptation to the outside diameter of the pipe.
      • Loss protection of the screw.
      • Locking screw with hexagonal and cross drive.

      The advantages / Product description

      The economical solution for light duty pipe fixing
      Advantages
      • Two screw pipe clamp for easy adjustment to suit the outer pipe diameter
      • The sound insulation insert offers noise protection and prevents contact corrosion between pipe and clamp
      • The screws loss protection prevents loss of the locking-screws during installation
      • The locing screw is equipped with an hexagonal and cross drive to simplifiy installation
      The fischer pipe clamp FRSR eco is a two-screw pipe clamp made of galvanized steel with a connection thread M8. The design with two screws enables optimized adjustment to the outside diameter of the pipe. This means that pipes up to 2" can be securely fastened indoors using threaded rods or hanger bolts. The pipe clamp has a sound insulation insert and thus effectively reduces noise transmission to the structure. The fischer FRSR eco is suitable for applications in the temperature range from -30 °C to +100 °C
      Properties
      • Material: Steel DC01 (Material No. 1.0330)
      • Material sound insert: EPDM
      • Connection nut: restistance welding M8, SW13
      • Locking screw: Hex nut SW8 with combination cross drive

      Application and approval

      Applications
      • For light duty pipe installation up to 2"
      • Economical solution for fixing pipes for plumbing in residential buildings
      • For pipes of various materials
      • Recommended for use in dry, interior environments

      Assembly instruction

      Functionality
      Mounting Strip 1 Picture
      1 / 4
      • 1
        Mounting Strip 1 Picture
      • 2
        Mounting Strip 1 Picture
      • 3
        Mounting Strip 1 Picture
      • 4
        Mounting Strip 1 Picture

      Technical data

      Thread (
      A
      )      		M8
      Size 3/4 in
      Clamping range (
      D
      )      		26 - 30 mm
      Width (
      B
      )      		75 mm
      Height (
      H
      )      		57 mm
      Width x thickness clamp band (
      b x s
      )      		20 x 1 mm
      Height (
      Z
      )      		37 mm
      Locking screw M5
      Max. recom. static load (centr. tension) (
      Nrec
      )      		0,8 kN
      Amount 100 pcs.
      GTIN (EAN-Code) 4048962490794
