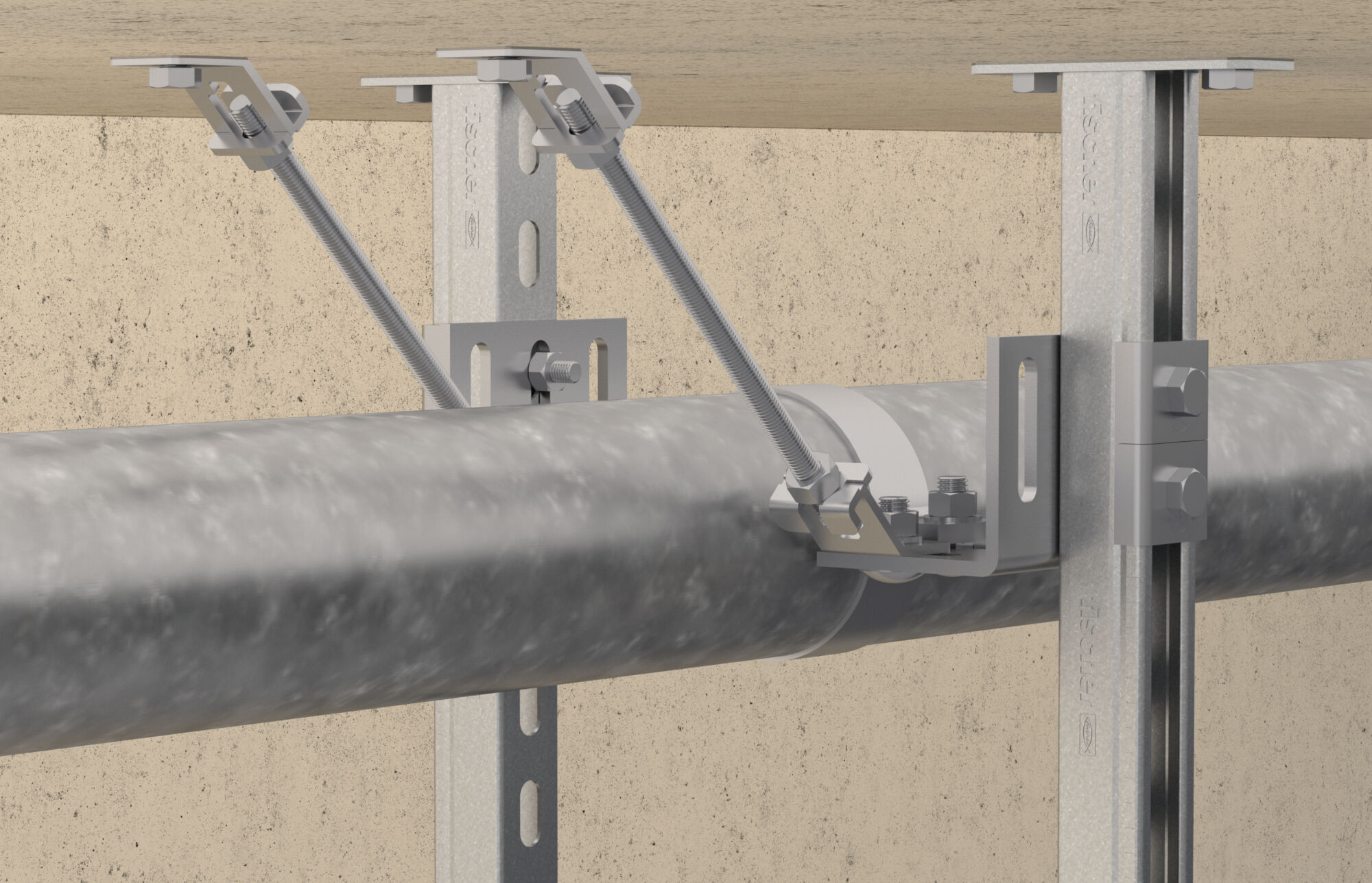

  • Application Picture
  • Application Picture
    • Application Picture
    • Product Category Picture
    • Application Picture
      Construction element - Threaded rod bracket FSB 45°.

      Threaded rod bracket FSB 45°

      The fischer threaded rod bracket FSB 45° is a 45° element for anchoring fischer mounting channels FUS to the substrate with threaded rods. The threaded rod bracket is mounted to the fischer channel FUS with an M10 screw and the channel nut FCN Clix P 10. The seat of the threaded rod bracket allows the threaded rod to be inserted quickly. The punched holes in the base plate allow for fixing directly onto a wall or ceiling, or onto a mounting channel. The galvanised zinc design is suitable for installations in buildings, the hot-dip galvanised or zinc flake surface coating and stainless steel designs are suitable for installations outside and in highly corrosive environments.
      Termékváltozat
      Download of image data

      Termékváltozat

      Szűrő
      Szűrő
      2 termékváltozat
      Packaging
      Amount
      GTIN (EAN-Code)
      A (z) 2 változatok 2 megtekintése

      Előnyök / Termékismertető

      Advantages
      • The anchoring element's socket allows the fast insertion of a pre-mounted M10 threaded rod with nut.
      • The hole in the base plate enables the direct fixing onto a wall or ceiling or onto a channel.
      Properties
      • Material FSB 45°: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
      • Material FSB 45° hdg: steel S235JR (material no. 1.0037) acc. to DIN EN 10025
      • Zinc plating: electro zinc-plated or hot-dip galvanised

      Használat és engedély

      Applications
      • For easy creation of bracing and stiffening using threaded rods and nuts.
      • FSB 45°: for use in dry interior areas.
      • FSB 45° hdg: for indoor and outdoor application.
