Art.-No. 52238

fischer Frame fixing SXR 10 x 140 T K with TX star recess

Name: fischer Frame fixing SXR 10 x 140 T K with TX star recess
Brand: fischer

Product variants

Download of image data

Top Features

Low anchorage depth saves time and costs.
ETA approval in concrete and masonry.
With pre-mounted safety screw with countersunk head.
Plug expands in solid building materials.
The plug anchors itself in the cavity in perforated building materials.

The efficient with short expansion element.

Advantages

The special functioning allows for use in solid and hollow building materials, ensuring an economical fixing.
The ETA assessment covers use in a range of solid and hollow building materials, and guarantees a secure fixing.
The specially developed combination of plugs and screws ensures the very best handling. The plug has a noticeable hold, making installation more convenient.
Extensive range with diameters of 6, 8 and 10 mm, usable lengths up to 210 mm.

The fischer frame fixing SXR is a plug made of high-quality nylon. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. The frame fixing can be used in a particularly cost-effective manner due to the low anchorage depth of only 50 mm. The fischer frame fixing SXR is suitable for fixing timber substructures, coat racks, and kitchen cabinets.

Applications

Façade, ceiling and roof substructures made of wood and metal
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams
TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Approved for:

Concrete ≥ C12/15
Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid block made from lightweight and normal weight concrete
Solid brick
Thermal insulation blocks

Also suitable for:

Natural stone with dense structure
Solid panel made from gypsum

You can find detailed information on building materials in the registration document.

Approvals

ETA-07/0121
DoP No. 0329

Functionality

The SXR is suitable for push-through installation.
The SXR expands in solid building materials.
In hollow building materials the loads are transferred in the area of the block fillets.
With vertically perforated bricks, only use rotary drilling (no impact drilling).
Countersunk head screws are recommended for fixing timber constructions. For metal constructions, plug with wide sleeve rim and hexagon head screws with moulded washer.

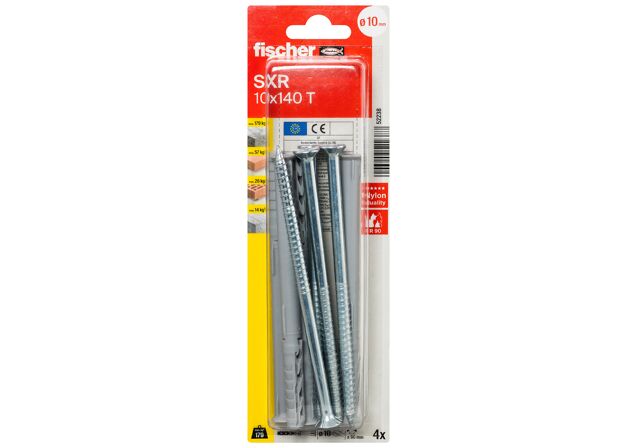

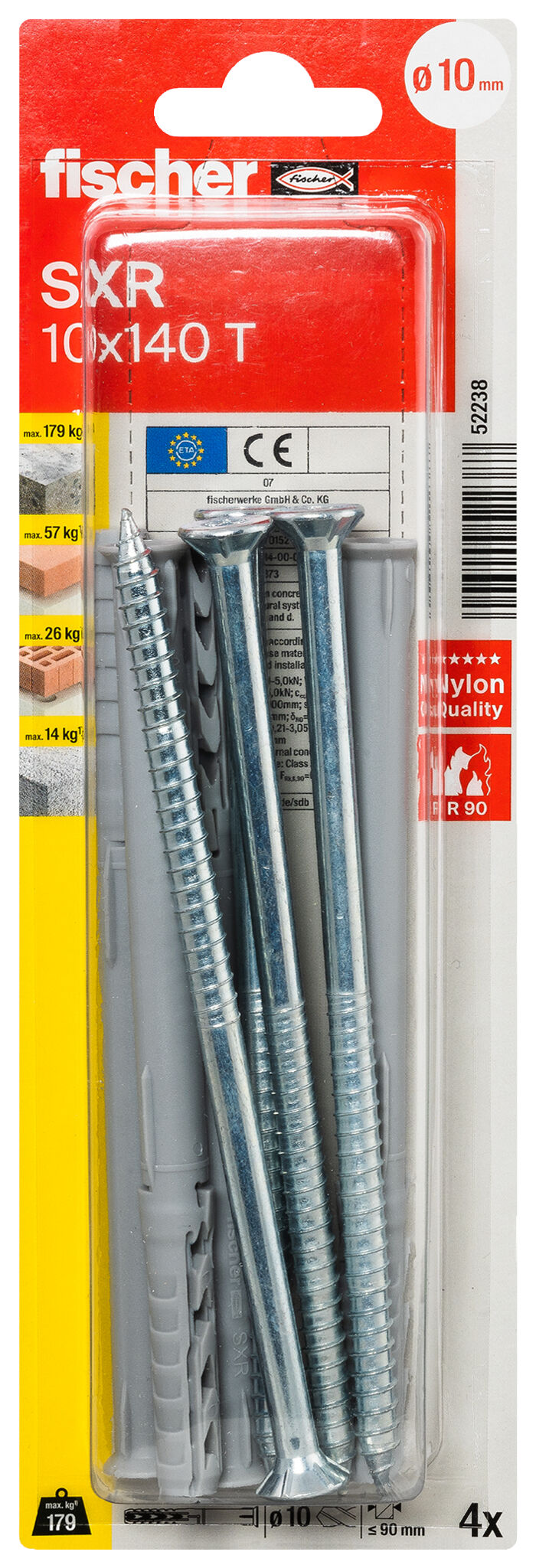

Mounting Strip 1 Picture

1 / 5

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	150 mm
Drive	TX40
Anchor length ( l )	140 mm
Contents	4 x Frame fixing SXR 10 x 140 4 x countersunk head screw 7.0 x 147 TX40
Packaging	Blister card
Amount	4 pcs.
GTIN (EAN-Code)	4006209522387
